The beauty and symmetry of crystals have fascinated people for thousands of years. Somehow, they seem different from more ordinary matter. However, most solid objects are made of many tiny interlocking crystals. It is only occasionally that the individual crystals are large enough to catch our attention, as in these beautiful examples.

Celestite                                 Sulfur                                            Pyrite

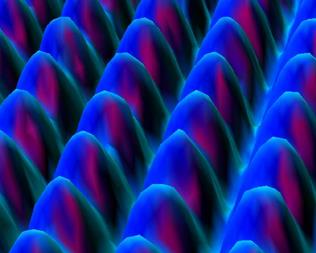

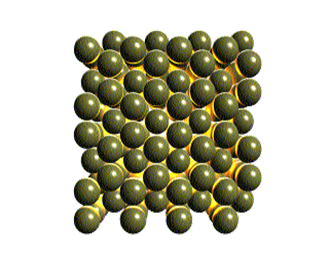

The atoms in a crystal are in a regular repeating pattern called the crystalline lattice.  Although the existence of this lattice has been known for many years, recently the scanning tunneling microscope (STM) was invented. This allows us to see individual atoms. Below is an STM image of a  platinum surface. Note the regular rows of Pt atoms.

The lattice can have a profound influence on the material’s properties. For example, below we see two crystals – graphite and diamond. They each contain only 1 kind of atom – carbon. The difference is in how those atoms are arranged.

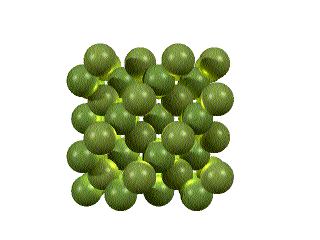

Graphite                Diamond

Graphite is black, soft, and an excellent lubricant. This suggests that it must be easy to separate atoms in graphite, or at least to make them slide past one another.

Diamond is transparent, strong, and very hard. It is a superb cutting tool. The atoms in diamond must be very strongly held in position.

Chemically, diamond is inert. Graphite, on the other hand, is very useful for absorbing and catalyzing reactions.  The structures of diamond and graphite explain these differences.

The carbon atoms in diamond are each bound to 4 others in a 3-dimensional network. To change the shape of a diamond or break it requires that many of these strong bonds be broken simutaneously. Since there is little room for other molecules to get into the structure, diamond is not very reactive.


Graphite consists of sheets of strongly bonded hexagonal rings. Each sheet is far from and weakly bound to the next. Thus, the sheets can slide past one another, making graphite a soft lubricant. The spaces between the layers allow other molecules to enter, explaining the absorbing and catalytic properties.

The structures of  graphite and diamond have long been known. However only recently has the scanning tunneling microscope (STM) given visual confirmation.

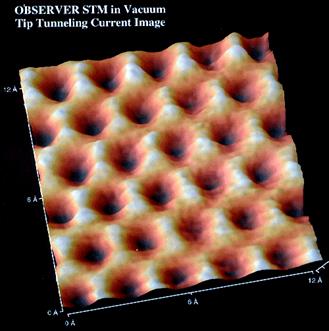

Shown below is an STM image of a graphite surface. This is an actual image, not a simulation. It clearly shows the interconnected 6-membered rings of graphite and the triangular geometry about each carbon atom.


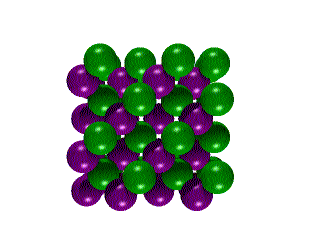

Hexagonal Boron NitrideCubic  Boron Nitride
