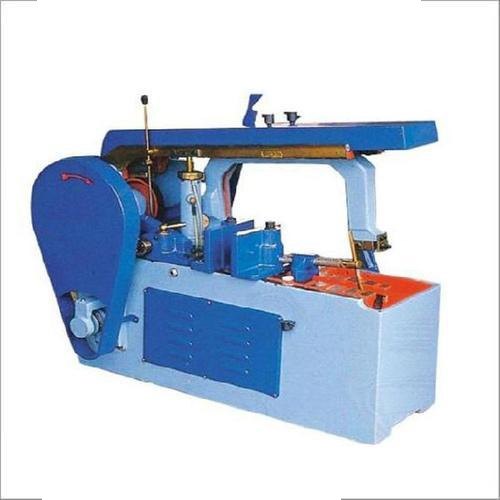

The Hydraulic Power Hacksaw Machine is has been designed by us for quick & accurate cutting of all nickel,

chrome, steel and plastic materials. The Hydraulic Control Hacksaw Machines are facilitated with simple & easy

controls. When the operation is complete, an automatic cut out operates while the bow slide returns to a position at

the top.

Construction:

Bed: Rigid casting with a wide through for collection of coolant, swarf & also houses the V – belts device, bed is

single piece casting.

Saw Frame: Rigid construction & runs is prismatic guide ensuring a square & parallel cut & this cut takes place

on the backward pull stroke. The blade is hydraulically lifted out of contact with work place on the forward stroke

to prevent wear of the blade.

The Drive: Given to the machine through V – Pulleys with provision to adjust fully the tension of the V – Belts.

The Shafts are fitted with taper and ball bearings which eliminate friction.

Speed: Two speeds suitable for all metals. High speed for metals like mild steel, brass, copper etc. and low

speed for cast iron.

Feed Saw: Controlled hydraulically by two levers provided at the dash – pot. One controls the rate of feed,

while the other enables the bow slide to be raised or lowered and the motor gets switched off on completion of

the cut.

Vice: Rigid construction. The one jaw remains fixed while other can be adjusted according to the size of the

material to be cut.

Coolant: Tank is totally enclosed in the machine bade with a constant speed pump which continuously

supplies coolant to the saw blade

Electricals: Push button starter is fitted with an adjustable trip mechanism with stops the machine soon after

the blade is clear form the work at extra cost
